排量 | 吸油绝对压力 | 最高连续压力 | 最高间隙压力 | 最高峰值压力 | 最低转速 | 最高转速 | 容积效率 |
V | Pe | P1 | P2 | P3 | nmin | nmax | ηv |
cm³/rev. | bar | r/min | % | ||||
0.19 | 0.7...3 | 200 | 230 | 250 | 1000 | 7000 | ≥90 |
0.26 | |||||||
0.38 | |||||||
0.5 | |||||||
0.65 | ≥91 | ||||||
0.75 | |||||||
0.88 | |||||||
1 | 850 | 6000 | ≥92 | ||||
1.25 | 700 | 5000 | |||||
1.5 | 600 | 4000 | |||||
1.75 | 180 | 210 | 230 | ||||
2 | 160 | 190 | 210 | 500 | 3000 |

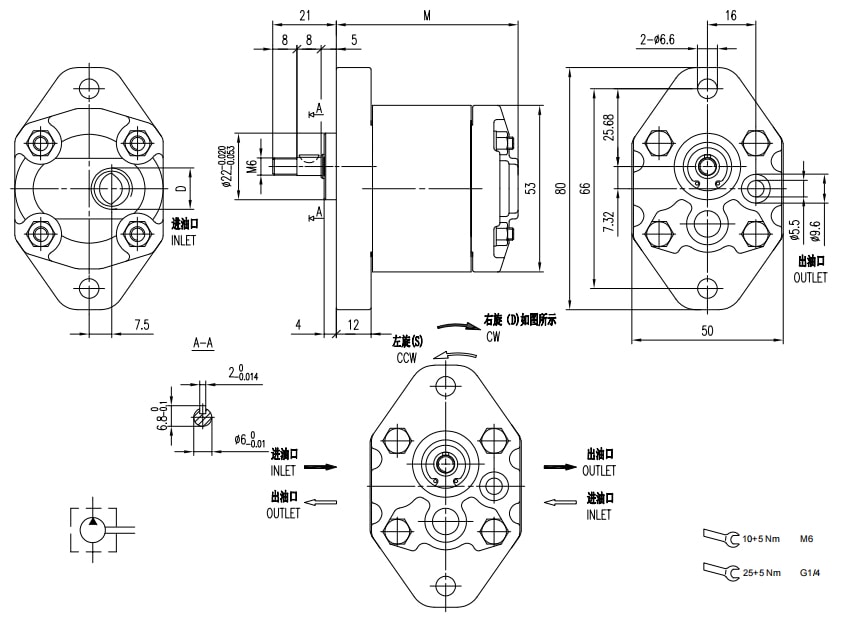

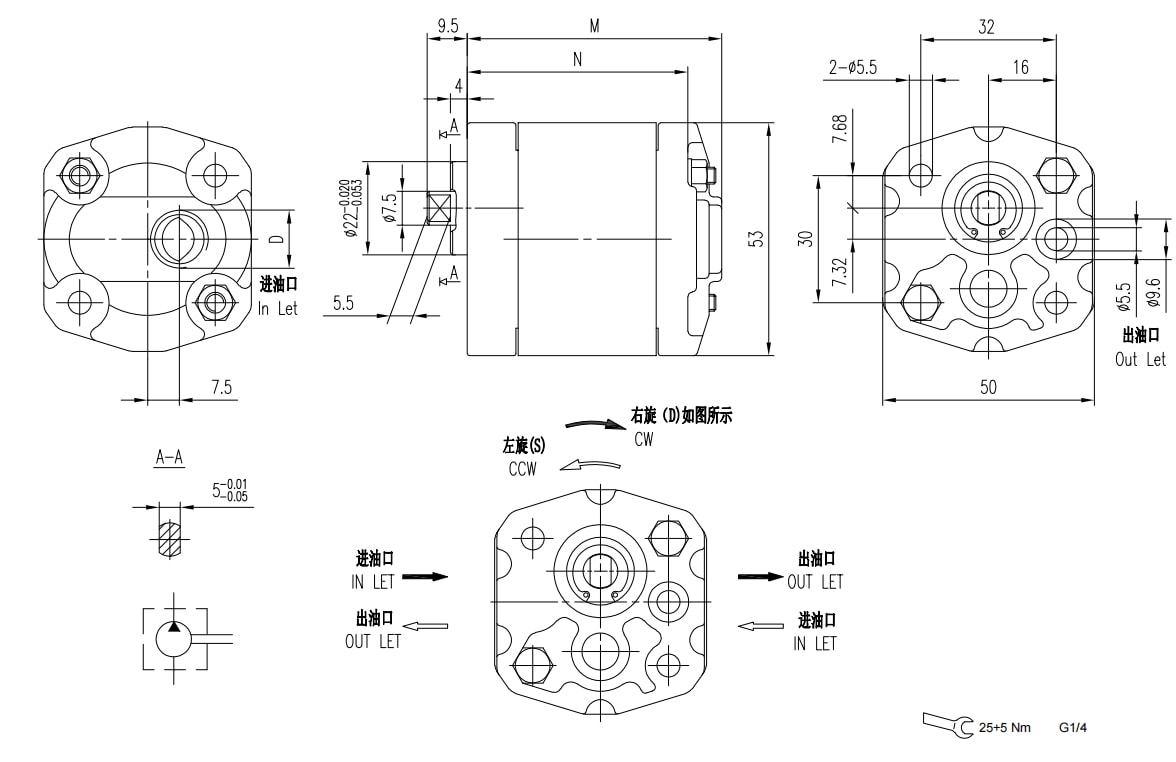

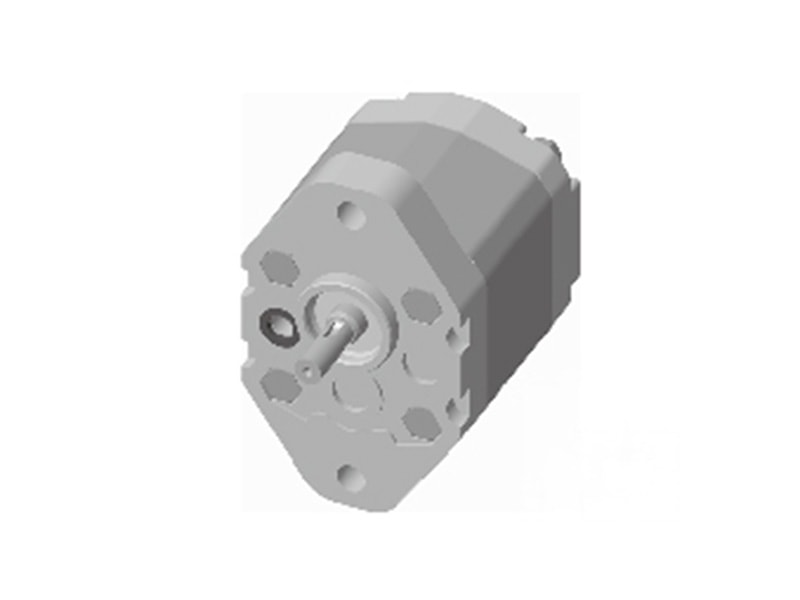

排量 | 最大压力 | 最高转速 | 最低转速 | 重量 | 尺寸 | 油口代码 | 进油口 | |||
P1 | P2 | P3 | M | N | ||||||
(cm³/rev.) | bar | bar | bar | (r/min) | (r/min) | Kg | mm | mm | ||
0.19 | 200 | 230 | 250 | 7000 | 1000 | 0.36 | 60 | 51 | LJ0 | G1/4 |
0.26 | 200 | 230 | 250 | 7000 | 1000 | 0.364 | 60.5 | 51.5 | LJ0 | G1/4 |
0.38 | 200 | 230 | 250 | 7000 | 1000 | 0.372 | 61.5 | 52.5 | UJ0 | G1/4 |
0.50 | 200 | 230 | 250 | 7000 | 1000 | 0.38 | 62.5 | 53.5 | LJ0 | G1/4 |
0.65 | 200 | 230 | 250 | 7000 | 1000 | 0.40 | 63.5 | 54.5 | LJ0 | G1/4 |
0.75 | 200 | 230 | 250 | 7000 | 1000 | 0.408 | 64.5 | 55.5 | U0 | G1/4 |
0.88 | 200 | 230 | 250 | 7000 | 1000 | 0.416 | 65.5 | 56.5 | LJ0 | G1/4 |
1.00 | 200 | 230 | 250 | 6000 | 850 | 0.42 | 66.5 | 57.5 | U0 | G1/4 |
1.25 | 200 | 230 | 250 | 5000 | 700 | 0.436 | 68.5 | 59.5 | LJ0 | G1/4 |
1.50 | 200 | 230 | 250 | 4000 | 600 | 0.452 | 70.5 | 61.5 | LJ0 | G1/4 |
1.75 | 180 | 210 | 230 | 4000 | 600 | 0.468 | 72.5 | 63.5 | LJ0 | G1/4 |
2.00 | 160 | 190 | 210 | 3000 | 500 | 0.484 | 74.5 | 65.5 | LJ0 | G1/4 |

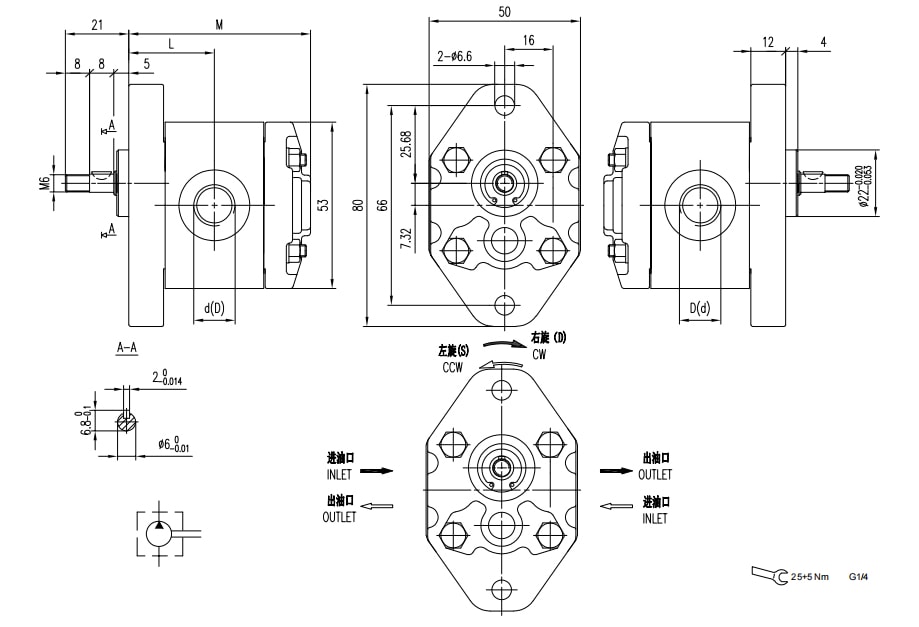

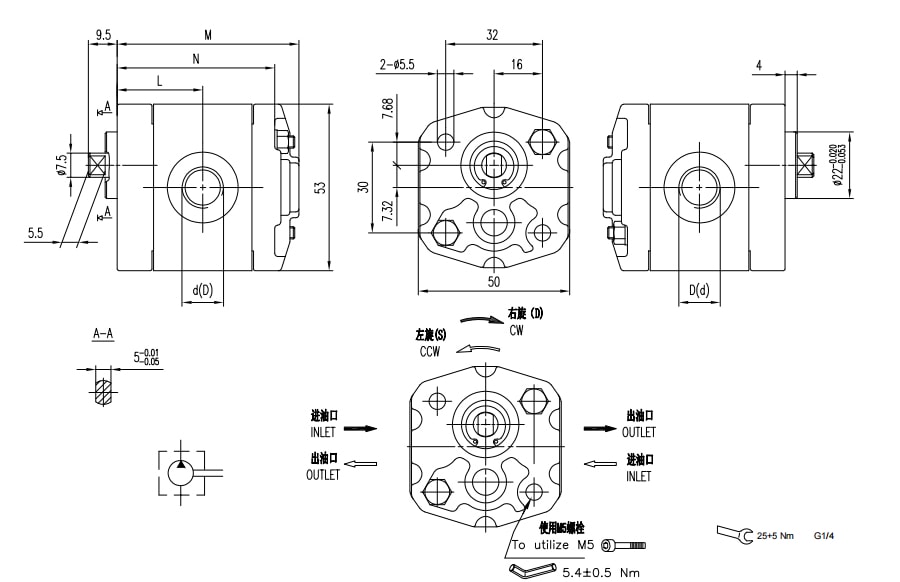

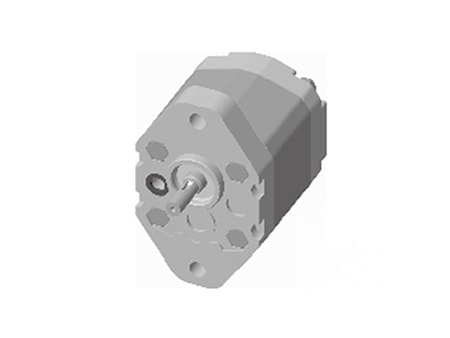

排量 | 最大压力 | 最高转速 | 最低转速 | 重量 | 尺寸 | 油口代码 | 进油口 D | 出油口 d | ||||
P1 | P2 | P3 | M | N | L | |||||||
(cm³/rev.) | bar | bar | bar | (r/min) | (r/min) | Kg | mm | mm | mm | |||
0.19 | 200 | 230 | 250 | 7000 | 1000 | 0.36 | 60 | 51 | 27.2 | L2 | G1/4 | G1/4 |
0.26 | 200 | 230 | 250 | 7000 | 1000 | 0.364 | 60.5 | 51.5 | 27.5 | L2 | G1/4 | G1/4 |
0.38 | 200 | 230 | 250 | 7000 | 1000 | 0.372 | 61.5 | 52.5 | 28 | L2 | G1/4 | G1/4 |
0.50 | 200 | 230 | 250 | 7000 | 1000 | 0.38 | 62.5 | 53.5 | 28.5 | L2 | G1/4 | G1/4 |
0.65 | 200 | 230 | 250 | 7000 | 1000 | 0.40 | 63.5 | 54.5 | 29 | L2 | G1/4 | G1/4 |
0.75 | 200 | 230 | 250 | 7000 | 1000 | 0.408 | 64.5 | 55.5 | 29.5 | L2 | G1/4 | G1/4 |
0.88 | 200 | 230 | 250 | 7000 | 1000 | 0.416 | 65.5 | 56.5 | 30 | L2 | G1/4 | G1/4 |
1.00 | 200 | 230 | 250 | 6000 | 850 | 0.42 | 66.5 | 57.5 | 30.5 | L2 | G1/4 | G1/4 |
1.25 | 200 | 230 | 250 | 5000 | 700 | 0.436 | 68.5 | 59.5 | 31.5 | L2 | G1/4 | G1/4 |
1.50 | 200 | 230 | 250 | 4000 | 600 | 0.452 | 70.5 | 61.5 | 32.5 | L2 | G1/4 | G1/4 |
1.75 | 180 | 210 | 230 | 4000 | 600 | 0.468 | 72.5 | 63.5 | 33.5 | L2 | G1/4 | G1/4 |
2.00 | 160 | 190 | 210 | 3000 | 500 | 0.484 | 74.5 | 65.5 | 34.5 | L2 | G1/4 | G1/4 |

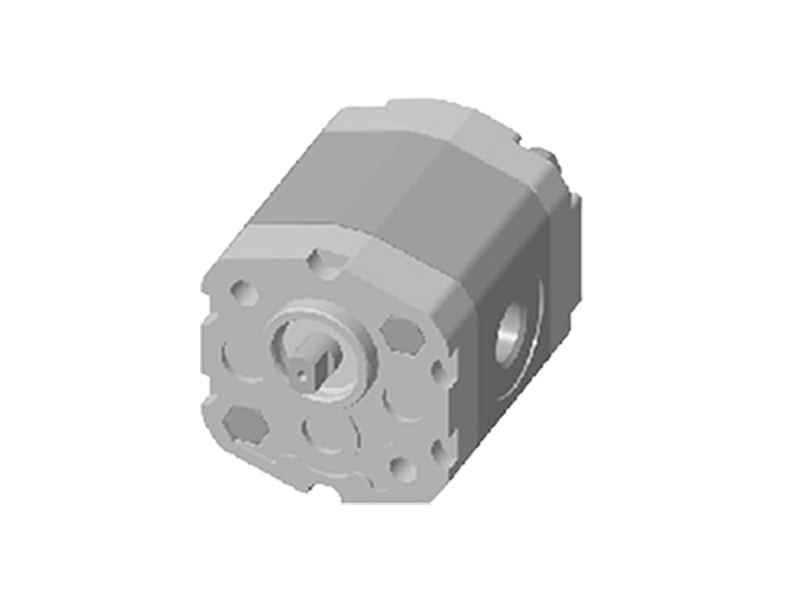

排量 | 最大压力 | 最高转速 | 最低转速 | 重量 | 尺寸 | 油口代码 | 进油口 | ||
P1 | P2 | P3 | D | ||||||
(cm³/rev.) | bar | bar | bar | (r/min) | (r/min) | Kg | mm | ||
0.19 | 200 | 230 | 250 | 7000 | 1000 | 0.395 | 60 | LJ0 | G1/4 |
0.26 | 200 | 230 | 250 | 7000 | 1000 | 0.4 | 60.5 | LJ0 | G1/4 |
0.38 | 200 | 230 | 250 | 7000 | 1000 | 0.41 | 61.5 | LJ0 | G1/4 |
0.5 | 200 | 230 | 250 | 7000 | 1000 | 0.42 | 62.5 | LJ0 | G1/4 |
0.65 | 200 | 230 | 250 | 7000 | 1000 | 0.43 | 63.5 | LJ0 | G1/4 |
0.75 | 200 | 230 | 250 | 7000 | 1000 | 0.44 | 64.5 | LJ0 | G1/4 |
0.88 | 200 | 230 | 250 | 7000 | 1000 | 0.45 | 65.5 | LJ0 | G1/4 |
1 | 200 | 230 | 250 | 6000 | 850 | 0.46 | 66.5 | LJ0 | G1/4 |
1.25 | 200 | 230 | 250 | 5000 | 700 | 0.48 | 68.5 | LJ0 | G1/4 |
1.5 | 200 | 230 | 250 | 4000 | 600 | 0.5 | 70.5 | LJ0 | G1/4 |
1.75 | 180 | 210 | 230 | 4000 | 600 | 0.51 | 72.5 | LJ0 | G1/4 |
2 | 160 | 190 | 210 | 3000 | 500 | 0.52 | 74.5 | LJ0 | G1/4 |

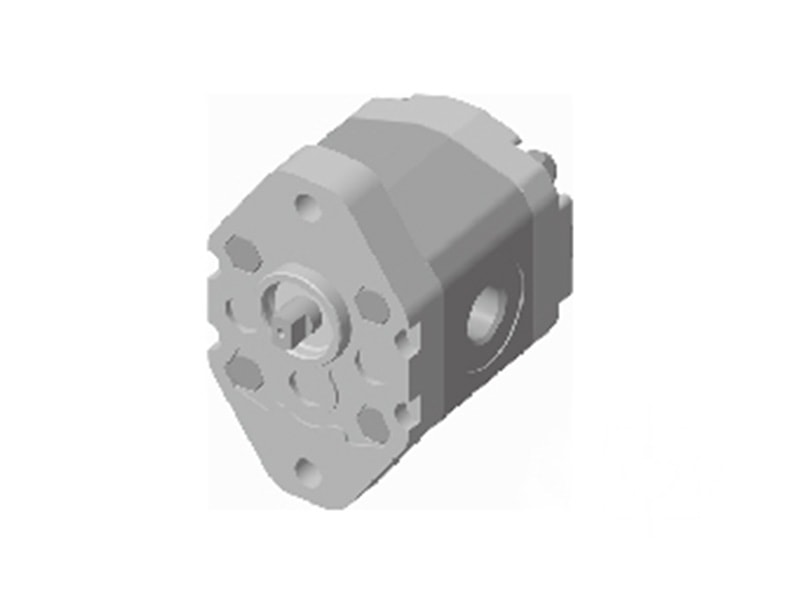

排量 | 最大压力 | 最高转速 | 最低转速 | 重量 | 尺寸 | 油口代码 | 进油口 | 出油口 | |||
P1 | P2 | P3 | M | L | D | d | |||||
(cm³/rev.) | bar | bar | bar | (r/min) | (r/min) | Kg | mm | mm | |||
0.19 | 200 | 230 | 250 | 7000 | 0.395 | 60 | 27.2 | L2 | G1/4 | G1/4 | |
0.26 | 200 | 230 | 250 | 7000 | 0.4 | 60.5 | 27.5 | L2 | G1/4 | G1/4 | |
0.38 | 200 | 230 | 250 | 7000 | 1000 | 0.41 | 61.5 | 28 | L2 | G1/4 | G1/4 |
0.5 | 200 | 230 | 250 | 7000 | 1000 | 0.42 | 62.5 | 28.5 | L2 | G1/4 | G1/4 |
0.65 | 200 | 230 | 250 | 7000 | 1000 | 0.43 | 63.5 | 29 | L2 | G1/4 | G1/4 |
0.75 | 200 | 230 | 250 | 7000 | 1000 | 0.44 | 64.5 | 29.5 | L2 | G1/4 | G1/4 |
0.88 | 200 | 230 | 250 | 7000 | 1000 | 0.45 | 65.5 | 30 | L2 | G1/4 | G1/4 |
1 | 200 | 230 | 250 | 6000 | 850 | 0.46 | 66.5 | 30.5 | L2 | G1/4 | G1/4 |
1.25 | 200 | 230 | 250 | 5000 | 700 | 0.48 | 68.5 | 31.5 | L2 | G1/4 | G1/4 |
1.5 | 200 | 230 | 250 | 4000 | 600 | 0.5 | 70.5 | 32.5 | L2 | G1/4 | G1/4 |
1.75 | 180 | 210 | 230 | 4000 | 600 | 0.51 | 72.5 | 33.5 | L2 | G1/4 | G1/4 |
2 | 160 | 190 | 210 | 3000 | 500 | 0.52 | 74.5 | 34.5 | L2 | G1/4 | G1/4 |

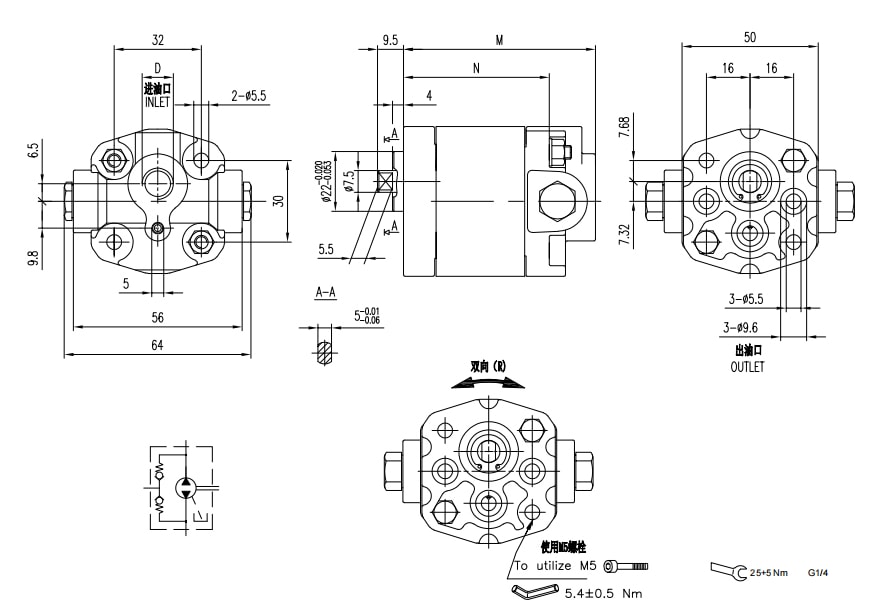

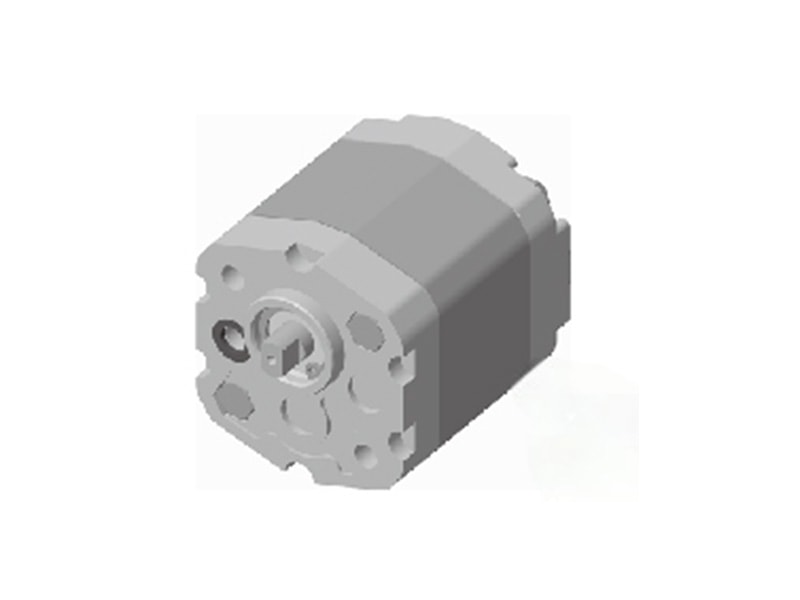

排量 | 最大压力 | 最高转速 | 最低转速 | 重量 | 尺寸 | 油口代码 | 进油口 | |||
P1 | P2 | P3 | M | L | D | |||||
(cm³/rev.) | bar | bar | bar | (r/min) | (r/min) | Kg | mm | mm | ||
0.19 | 150 | 170 | 190 | 7000 | 0.4 | 68 | 51 | LJ0 | G1/4 | |
0.26 | 150 | 170 | 190 | 7000 | 1000 | 0.41 | 68.5 | 51.5 | LJ0 | G1/4 |
0.38 | 150 | 170 | 190 | 7000 | 1000 | 0.42 | 69.5 | 52.5 | LJ0 | G1/4 |
0.5 | 150 | 170 | 190 | 7000 | 1000 | 0.43 | 70.5 | 53.5 | LJ0 | G1/4 |
0.65 | 150 | 170 | 190 | 7000 | 1000 | 0.44 | 71.5 | 54.5 | LJ0 | G1/4 |
0.75 | 150 | 170 | 190 | 7000 | 1000 | 0.45 | 72.5 | 55.5 | LJ0 | G1/4 |
0.88 | 150 | 170 | 190 | 7000 | 1000 | 0.46 | 73.5 | 56.5 | LJ0 | G1/4 |
1 | 150 | 170 | 190 | 6000 | 850 | 0.47 | 74.5 | 57.5 | LJ0 | G1/4 |
1.25 | 150 | 170 | 190 | 5000 | 700 | 0.49 | 76.5 | 59.5 | LJ0 | G1/4 |
1.5 | 150 | 170 | 190 | 4000 | 600 | 0.51 | 78.5 | 61.5 | LJ0 | G1/4 |
1.75 | 150 | 170 | 190 | 4000 | 600 | 0.52 | 80.5 | 63.5 | LJ0 | G1/4 |
2 | 150 | 170 | 190 | 3000 | 500 | 0.53 | 82.5 | 65.5 | LJ0 | G1/4 |
